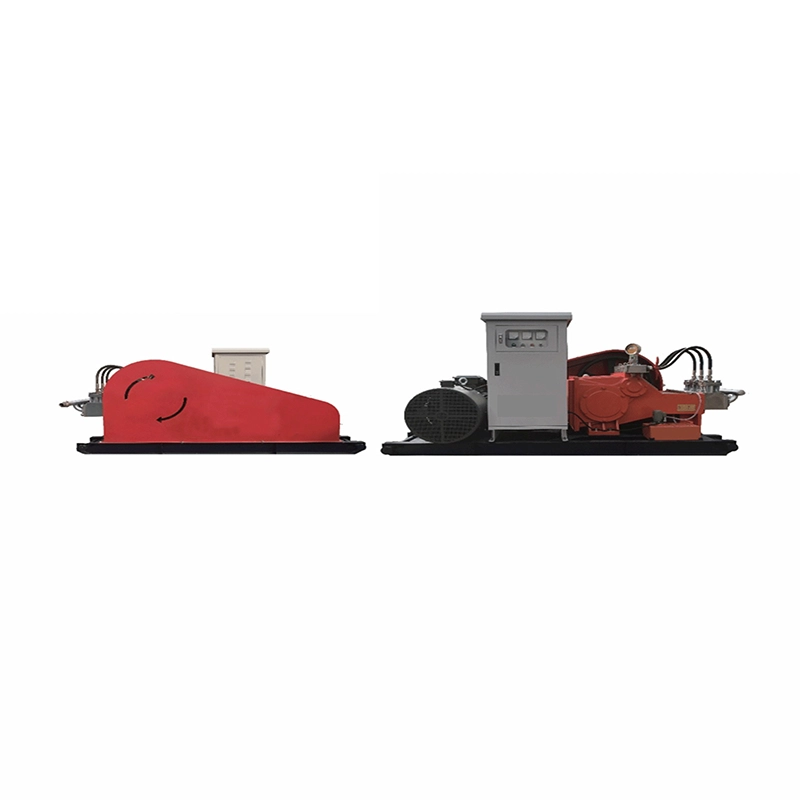

Tube Gyratorius RAMULUS Pump

RM benevolenter recipit vos emere duplex TUBULUM gyratorius aspergam sentinam ex officina. Sequimur principium certa qualis, conscientious pretium et calidum servitium.

Mitte Inquisitionem

depictio producti

Duplex Tube Gyratorius Jet sentinam est tardus generatio uber ex variis genera luto soleatus. Et Hydraulicas finem duplex tubi gyratorius jet sentinam capulur caliginosum capite quod facile disassemble. Power finem adoptat integralis volvens afferentem traductionem, super virtute finis, humilis strepitu et environmentally amica uber. Sigillum vitae potest augeri a LX%. Minimum temperatus ortum, XXIV-hora continua operatio, simplex sustentacionem et altius perficientur-pretium ratio. Est idoneam ad altus-pressura gyratorius jet grouting, sagum grouting, retinens cofferdam, mea plugging, bene dolium murum praesidio, fastigio ancoris et aliis campis curatio.

Si vos es interested in duplici Tube Gyratorius Jet Sentinam, Welcome to Buy Tube Gothary Jet Pump a Rom. Omne petitionem customers non respondit intra XXIV horas.

XPB, 90EX Variabilis Frequency IV-Level Motor euismod parametri

Maximus motricium celeritate		1480r / min		Plungor diameter		80mm
Theoricus influo		Motricium Power (KW)					Plungor Diameter (mm)
Theoricus influo		55	75	90	110	132
m³/ H	L / min	Rated Voltage deficere (MPA)
5.6	94	33	45	54	60	60	50
6.8	114	27	37	44	54	56	55
8	135	23	31	37	46	50	60
9.5	159	19	26	32	39	45	65
11	184	16	23	27	33	39	70
12.7	212	14	20	24	29	34	75
14.4	241	12	17	21	25	30	80

XPB, 90EX Variabilis frequency VI-gradu motor perficientur parametri

Maximus motricium celeritate		980r / min		Plungor plaga		80mm
Theoricus influo		Motor Power (KW)					Plungor Diameter (mm)
Theoricus influo		55	75	90	110	132
M3 / h	L / min	Rated defluxiones Voltage (MPA)
3.7	62	48	60	60			50
4.5	75	40	55	55	60		55
5.3	89	33	45	45	56	60	60
6.3	105	28	40	40	48	56	65
7.2	121	24	35	35	40	48	70
8.3	139	21	30	30	35	42	75
9.5	159	18	26	26	31	35	80

XPB, 90EX Electromagnetic celeritate Regulating motricium perficientur parametri

		1320r / min		Plungor plaga		80mm
Theoricus influo		Motricium Power (KW)					Plungor Diameter (mm)
Theoricus influo		55	75	90	110	132
M3 / h	L / min	Rated Voltage deficere (MPA)
13	217	12	17	20	25	30	80
11	188	14	19	23	28	34	75
9.9	165	16	22	26	32	39	70
8.6	141	18	25	31	38	45	65
7.1	119	22	30	37	45	50	60
6.0	100	26	37	44	53	56	55
5.0	83	32	44	53	60	60	50

XPB, 90EX Variabilis frequency IV-gradu motor perficientur parametri

Maximam motricium celeritate		1480r / min		Plungor plaga		80mm
Theoricus influo		Motor Power (KW)					Plungor Diameter (mm)
Theoricus influo		55	75	90	110	132
M3 / h	L / min	Rated Voltage deficere (MPA)
4.28	71	42	58	70	85	102	50
5.17	86	35	48	57	70	84	55
6.15	102	29	40	48	59	71	60
7.23	120	25	34	41	50	60	65
8.38	140	22	30	35	43	52	70
9.6	160	19	26	31	38	45	75
10.9	182	17	23	27	33	40	80

Rota CCXII Big Rota DCCC Sprint CLI

XPB, 90EX Variabilis frequency VI-gradu motor perficientur parametri

Maximus motricium celeritate		980r / min		Plungor plaga		80mm
Theoricus influo		Motricium Power (KW)					Plungor Diameter (mm)
Theoricus influo		55	75	90	110	132
M3 / h	L / min	Rated Voltage deficere (MPA)
3.15	53	58	79	94	115	138	50
3.8	64	48	65	78	95	114	55
4.5	75	40	55	66	80	96	60
5.33	89	34	47	56	68	81.9	65
6.2	105	29	40	48	59	70.6	70
7.1	118	26	35	42	51	61.5	75
8.0	134	23	31	37	45	54	80

Big rota DCCC Sprint CXI Whee CCXXXVI

XPB, 90EX Variabilis frequency IV-gradu motor perficientur parametri

Maximus motricium celeritate		1480r / min		Plungor plaga		80mm
Theoricus influo		Motricium Power (KW)					Plungor Diameter (mm)
Theoricus influo		55	75	90	110	132
M3 / h	L / min	Rated Voltage deficere (MPA)
4.76	79	38	52	62	76	92	20
5.76	96	31	43	52	63	76	55
6.84	114	26	36	43	56	64	60
8.05	134	23	31	37	45	65	65
9.3	155	20	27	32	39	47	70
10.7	178	17	23	28	34	41	75
12.2	203	15	20	24	30	36	80

Big Wee Whee CCXXXVI Sprint Sprint

XPB, 90EX Variabilis frequency VI-gradu motor perficientur parametri

Maximus motricium celeritate		980r / min		Plungor plaga		80mm
Theoricus influo		Motricium Power (KW)					Plungor Diameter (mm)
Theoricus influo		55	75	90	110	132
M3 / h	L / min	Rated Voltage deficere (MPA)
2.82	47	64	88	105	129	154	50
3.4	57	53	72	87	106	127	55
4.07	68	45	61	73	89	107	60
4.76	80	38	52	62	76	91	65
5.5	92	33	45	54	66	79	70
6.4	106	29	39	47	57	68	75
7.2	120	25	34	41	50	60	80
